The Smartwall and Filterbank extraction units guarantee clean air
The SmartWall and the Filterbank are unique state-of-the-art repair solutions for air cleaning, doing minor damage, and non-structural repairs inside a workshop where dust and fume extraction is necessary.
These units clean the air by filtering out all the VOCs and pushing out clean air! Plus, the digital dashboard allow you to document proof of filtration with tons of data, ensuring compliance anywhere!
When linking The Hybrid Paint Booth with either our FILTERBANK or the SMARTWALL you can work faster and more efficiently while ensuring clean air. This is an unbelievably effective system unlike anything else on the market anywhere in the world!
What makes them unique?
Connect up to 5 inlet hoses (e.g. the Hybrid Paint booth)
Compliance with regulations
Sustainable
Adds workflow flexibility
Lowers energy consumption by up to 96%
Intelligent Monitoring and Documentation System
the digital dashboard not only monitors but also documents all filtration data ensuring compliance anywhere!
VOC (Volatile Organic Compounds)
Air Speed
Humidity
Temperature
Differential pressure
Fan speed
Spray gun air feed supply
Electronic components

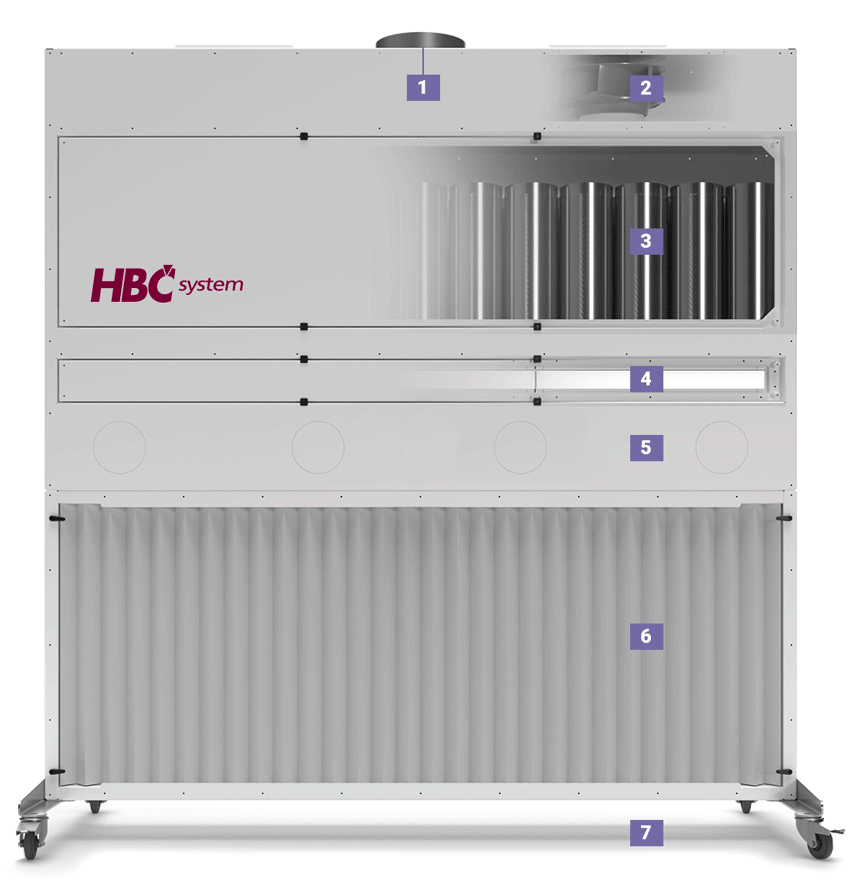

SM3000 - SMARTWALL
Technical Specifications
1 - Air Outlet
2 - Fans – 220/110 Volt (ATEX) x 2
3 - Activated Carbon Filter Cartridges x 26
4 - Paint stop and particle inlet filters x 3
5 - Connect up to 5 exhaust hoses
6 - Paint Stop Inlet Filter x 2
7 - Caster roller wheels x 4

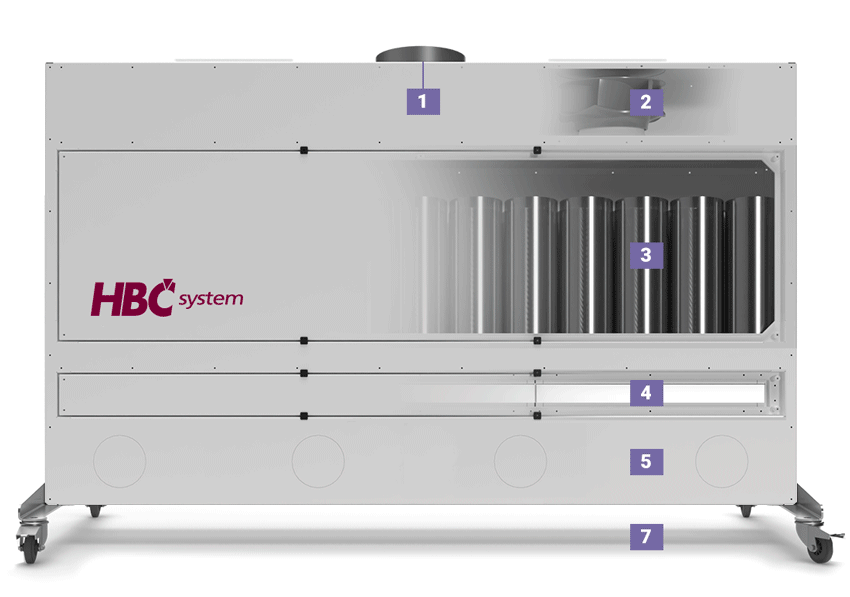

SM2000 - FILTERBANK
Innovative 4-Stage
Filtration System
Differential pressure switches monitor airflow pressure and indicate when filters need replacing.
Stage-1
Paint Arrestor
(Paper Media) to collect the dissociative particles.
Stage-2
Micro-filter
(Synthetic Media) to collect fine particles and dust.
Stage-3
Pleated Box
(Synthetic Media) to pre-filter micro particles & dust.
Stage-4
Carbon Block
(Active Charcoal filter) to reduce fumes and odours.
Zero Pollution Activated Carbon Filter Cartridges
Designed for effective air purification of odors and gasses using a special high-activated carbon (made from natural raw materials).
Includes 26 x filterbags
Filter class: ePM1 60%
Simple bayonet connection
Lightweight frame
Inherently leak-free design
High dust collection capacity
Constant efficiency
Outside / inside diameter: Ø 145 mm / 90 mm
Length: 453 mm
Weight carbon / cartridge: 2,2 kg / 2,8 kg
Thickness carbon bed: 26 mm
