• Diamond Cut - Alloy Wheel Repair Centre // automated
    Most new cars are fitted with diamond cut alloy wheels as standard - increasing the demand for repairs.
    Diamond Cut - Alloy Wheel Repair Centre // automated
    Most new cars are fitted with diamond cut alloy wheels as standard - increasing the demand for repairs.


  • Fully Automated Alloy Wheel Repair Centre. The latest technology for diamond cut alloy wheels.

    The fully automated Diamond Cut Alloy Wheel Repair Centre from HBC system provides you with the highest quality finish and the quickest turnaround time available.

  • The majority of new cars come with alloy wheels as standard and the different designs available are increasing. With this growing market there is more and more demand for diamond cut wheel repairs.

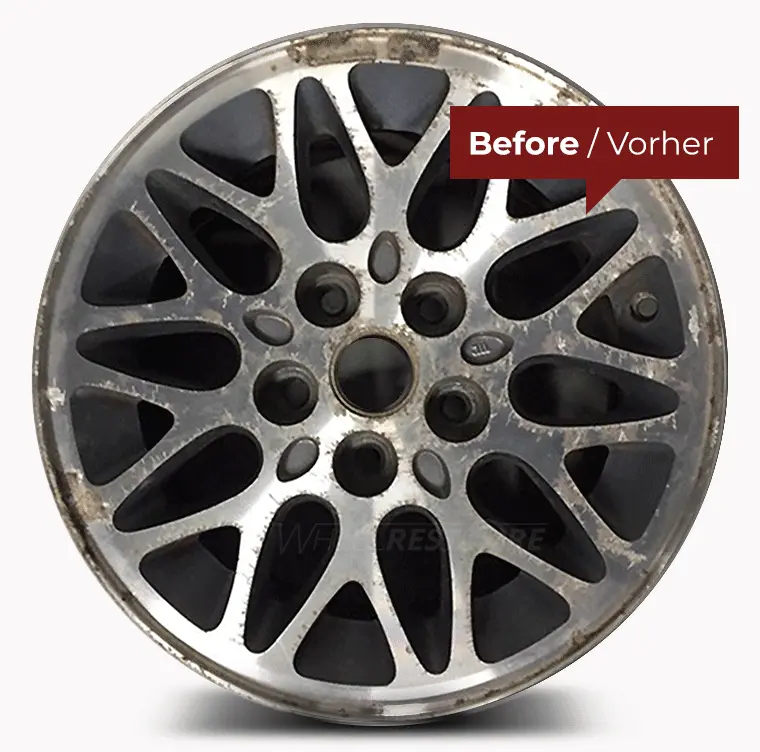

  • Diamond cut is an alloy wheel which has been put on a lathe and part of or the entire painted surface of the wheel machined off to leave a shiny alloy finish. A small part of the actual alloy is machined off to create this finish. It is then lacquered over to prevent corrosion.

  • ✓   Restores diamond cut alloy wheels < 26”
    ✓   Digital optimisation software package

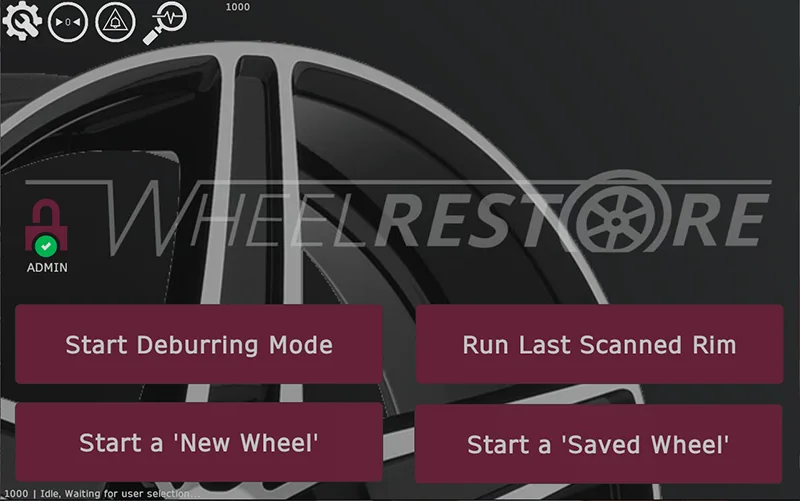

    ✓   Touchscreen controller
    ✓   Wheel profile storage - wheel library
    ✓   Automated self-plotting probe
    ✓   Automatic electronic pump lubrication
    ✓   Whole cast iron base
    ✓   X & Z axis servo motors - controlled cut
    ✓   Fully CE compliant

  • Type of Repairs
    Kerb damage, break dust, chipped edges on diamond cut alloy wheels.

  • Number of Repairs (avg.)
    Unlimited
    Tip to be replaced after 60-90 typical wheels

  • Time of Repairs (avg.)
    typical 18’’ wheel, 2 min.
    For complex wheels, 4-6 min.

  • Simple automated repair process

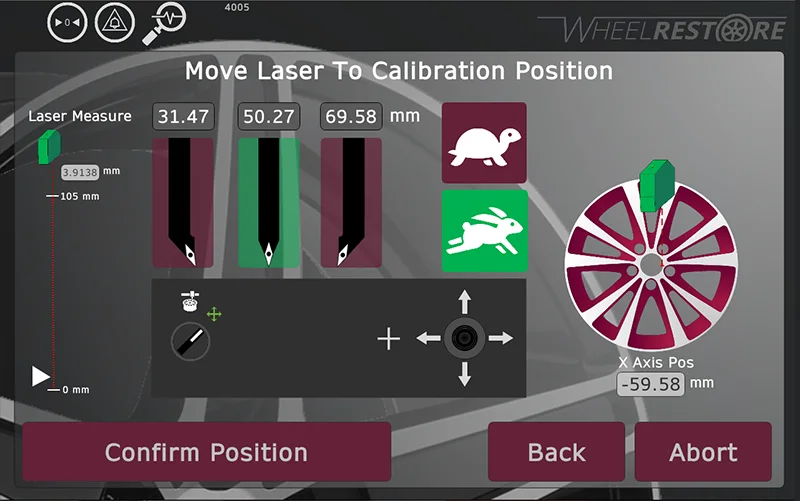

    PROBING THE ALLOY WHEEL
    Set the start point > Set the end point > Set safe distance / save wheel name > Start probing
    (Complex wheels require middle points)

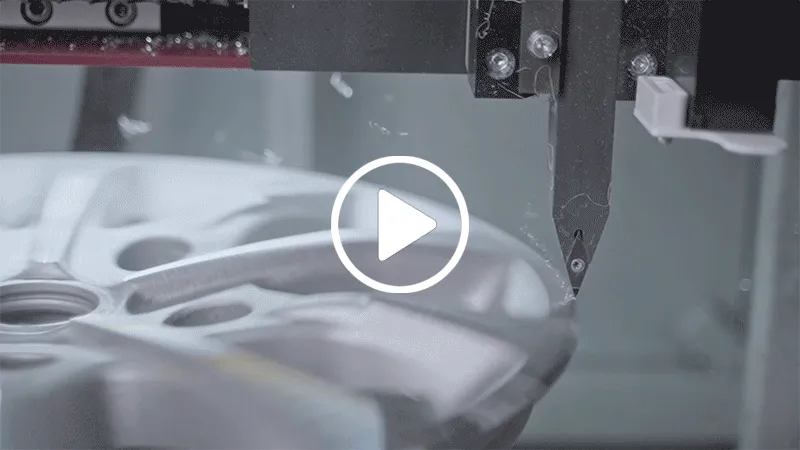

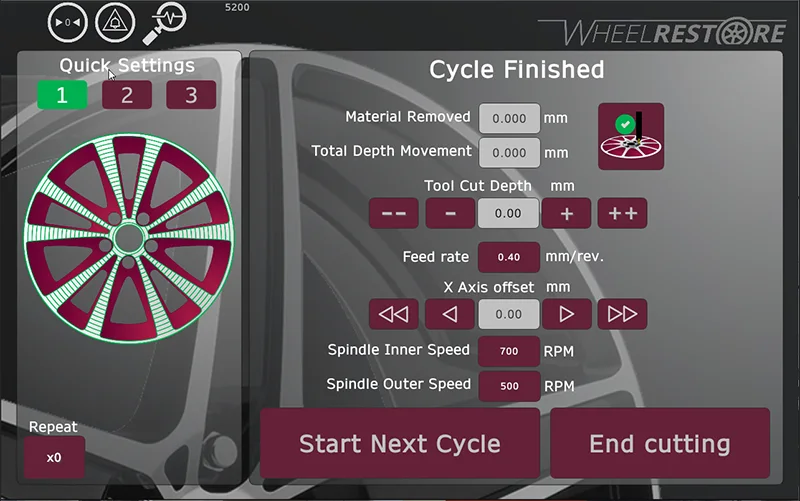

    CUTTING THE ALLOY WHEEL

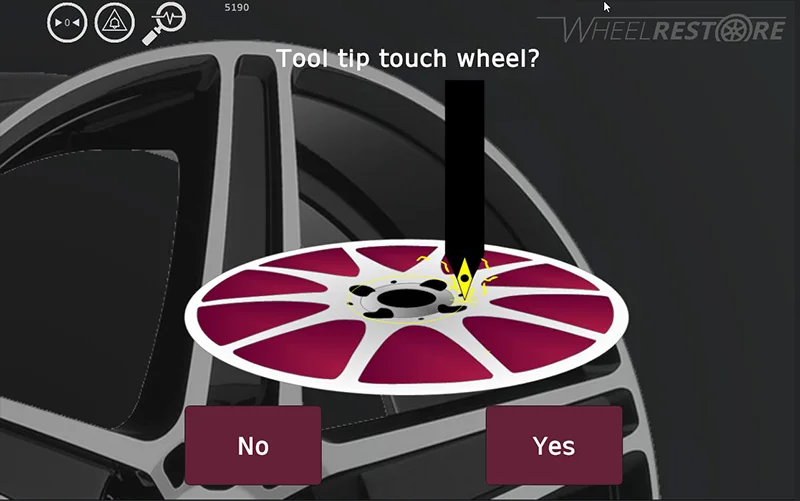

    Open G code file > Set tool start point > Start cutting

  • X axis travel : 360mm
    Z axis travel : 500mm
    Max wheel diameter : 660mm (26’’)
    Jaw chuck :  12’’ with special 3 soft jaws
    Alloy wheel gripping O.D. Range :  14’’~26’’
    Bed width : 360mm
    Spindle motor / speed : 5.5kw / 40-1800r/min

  • Max. Measured depth of probe : 50 mm
    X axis rapid traverse : 4 m/min
    Z axis rapid traverse : 6 m/min
    Cutting feed rate range : 0.005-100 mm/r
    Machine dimensions : 2100 x 1700 x 1950 mm
    Packing Size (L x W x H) : 2420 x 1800 x 2100 mm
    Weight - N.W. / G.W. : 2300/ 2400 kg
