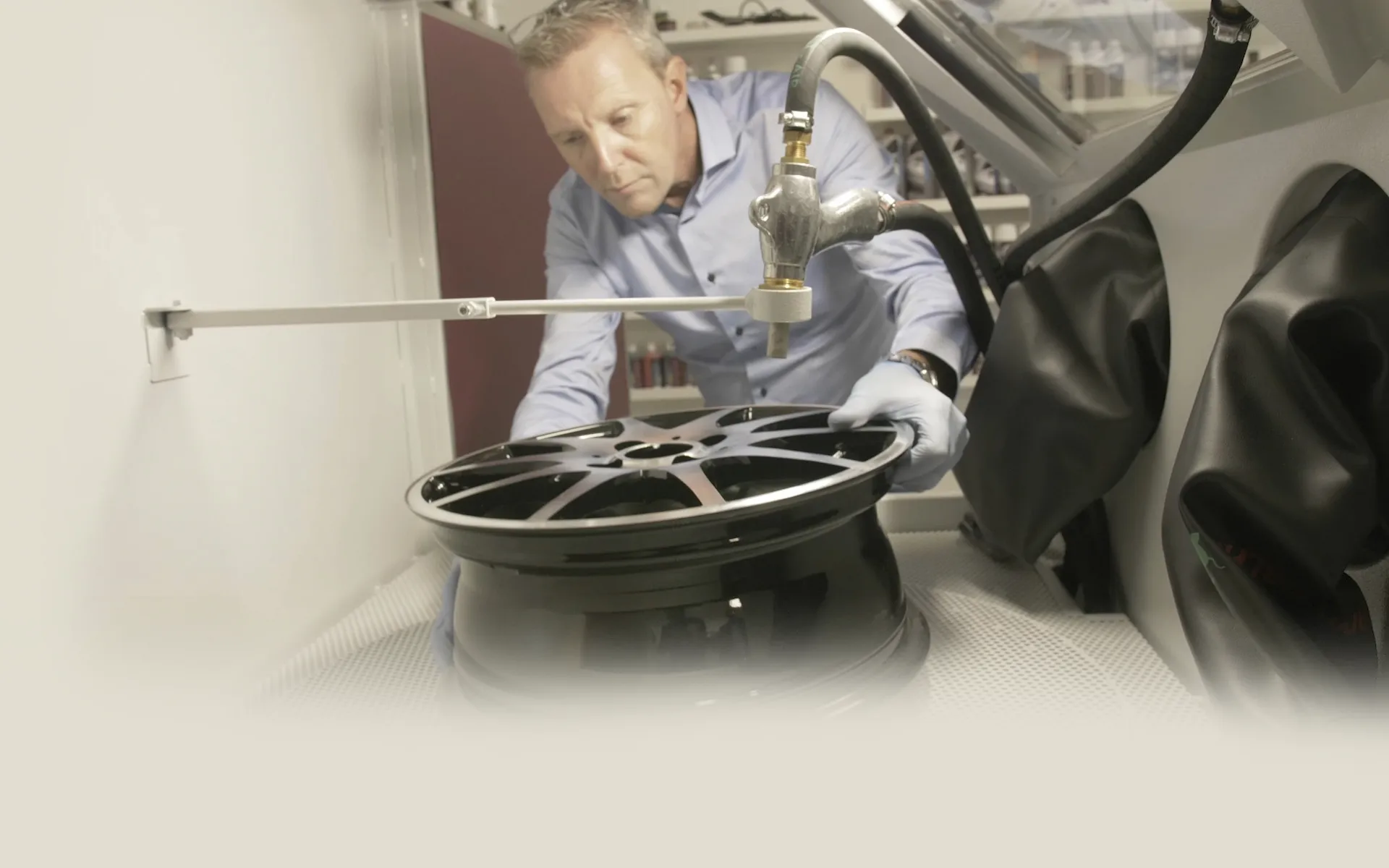

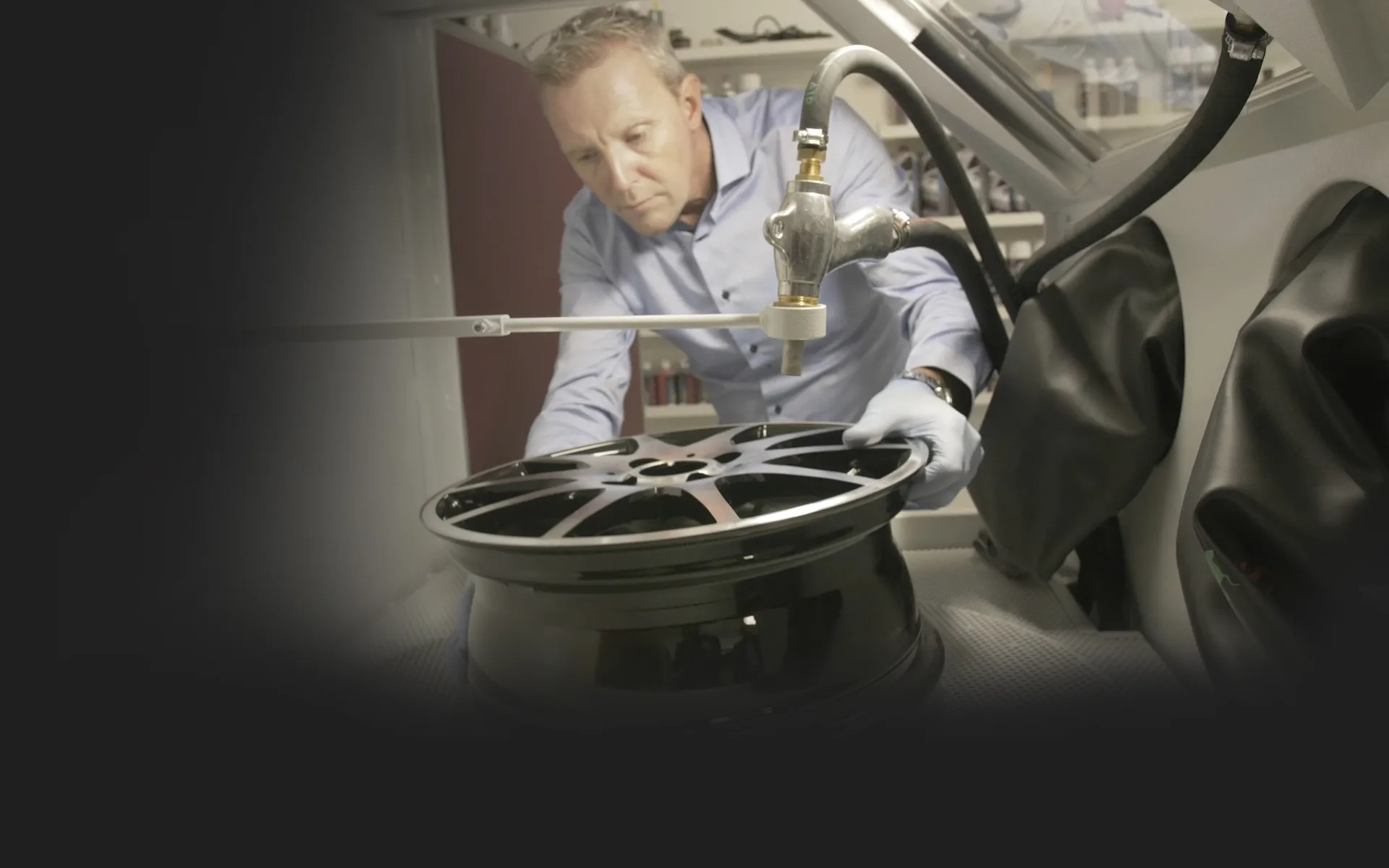

Alloy Wheel Blast Cabinet

Alloy Wheel Blast Cabinet

With combined filtration and dust collection. Custom designed for effective blast etching of alloy wheels.

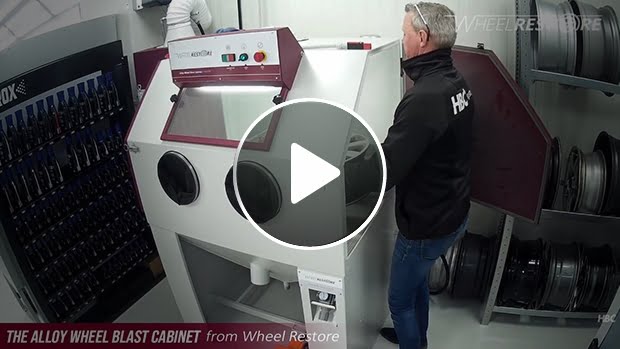

Alloy Wheel Blasting Cabinet

Alloy Wheel Blast Cabinet with combined filtration and dust collection

WM700 from Wheel Restore.

The heavy duty all steel blast cabinet affords excellent visibility of the wheel and the area being etched. Bright internal lighting delivers even illumination without shadows. Optimal visibility is maintained inside the cabinet by a highly efficient dust collector constantly removing media dust and fine particles.

Receive a Quote today

Cyclone for dust separation and
recycling media - Minimizing Waste

The Wheel Blast cabinet is designed with a cyclone for dust separation and recycling.

Filtration with self-cleaning cartridge filters.

Filtration system equipped with polyester filter cartridge (Filtering Surface mq.3) with a pressure switch for the monitoring of changes of pressure and detection of clogging of the filter. The automatic cartridge cleaning function, obtained with a timed powerful compressed air jet.

Illustration of how the filtration with self-cleaning cartridge filters works.

Purpose built for wheel specialists and workshops. The work zone is optimized with clear viewing angles combined with sharp LEDs that ensure the optimal work conditions.

The bead blasting process produces an even finish with easy sweeps across the wheel surface and, unlike traditional disc sanders, it allows both easy penetration of the blast media stream between the spokes and also very precise localised etching if required. It also provides a fast and even light etching to remove only the chipped lacquer on virtually new wheels, whilst being capable of etching right back to bare metal if required.

Seamless integration into the workshop

Compact design, small footprint

The Wheel Restore product range has been specifically designed to seamlessly integrate into a majority of workshops. The space-efficient and mobile design allows for a streamlined, efficient workflow, without ever occupying excessive space.

Perfect for mobile workshops

The Wheel Restore product range is designed to prioritize versatility. Its compact, robust, and durable design enables effortless installation in the rear of a van or truck, making it an ideal addition to a mobile repair service. Additionally, the advanced noise reduction technology ensures virtually silent operation, eliminating most restrictions when choosing a parking or operating location.

Whhel Restore product range outfitted in a van

Alloy Wheel Blast Cabinet

Cabinet Dimensions (H×W×L)750×1100×850mm
External Dimensions (H×W×L) 1800×1150×1300mm
Rotating TableØ mm 700
Motor-Driven Exhaust Fan0.75 HP
Compressed Air Consumption780 lt/1’ – 6 atm
Power Supply220 – 380 V - 3-Phase 50 Hz

Filtration – Dust Collector

External Dimensions (H×W×L)1890×620×640mm
Filtering surface 3 m2
Cartridge1 Polyester

Alloy Wheel Blast Cabinet Overview

The specifications of the Alloy Wheel Blast Cabinet are specified by text.

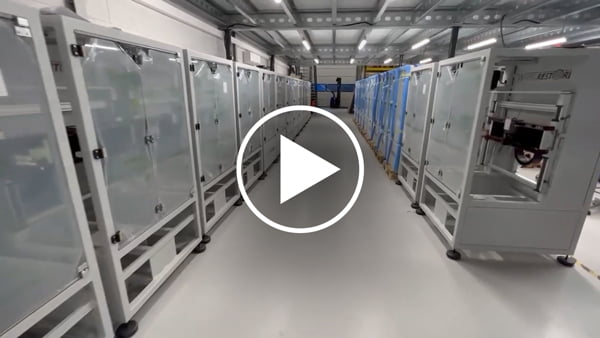

Designed and manufactured in Denmark

EXPANDING ON THE WHEEL RESTORE LEGACY

The Wheel Restore equipment range draws on our extensive experience in the wheel repair industry, having established ourselves as the world's leading manufacturer of the Diamond Cut Repair Machine, as well as pioneering unique air cleaning technologies for the spray booth market.

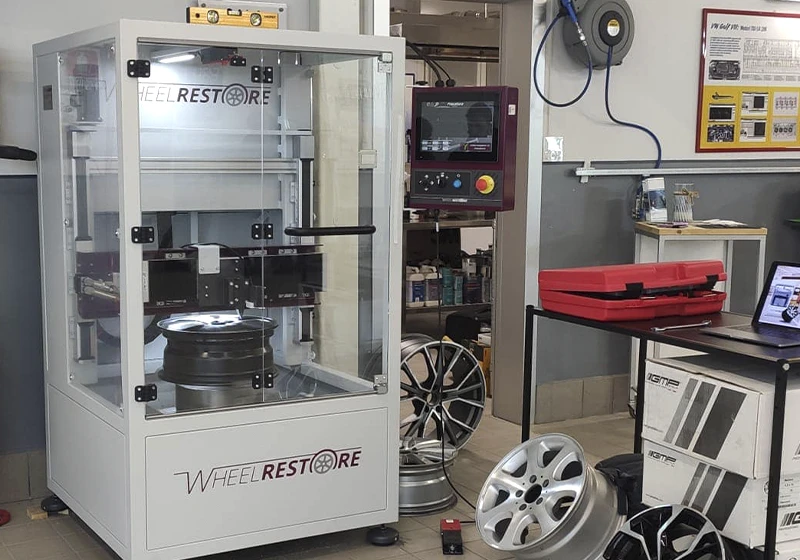

Alloy Wheel Diamond Cut Machine
